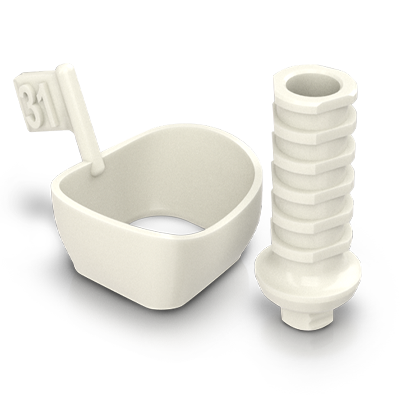

iShell Custom Healing Abutment
The iShell allows you to quickly create a more natural tissue emergence at the time of implant placement or uncovering.1. Create a New Case on the Vulcan Customer Portal
2. Choose Lab Product Group “Custom iShell”

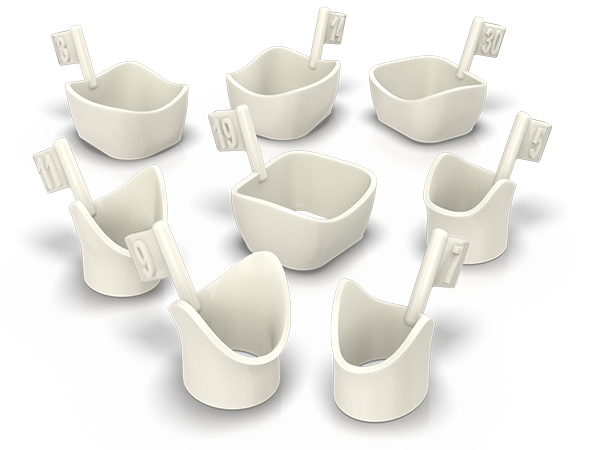

3. Choose a Product
- iShell for Custom Healer, Sites 5 &12
- iShell for Custom Healer, Sites 6 & 11
- iShell for Custom Healer, Sites 7 & 10
- iShell for Custom Healer, Sites 8 & 9
- iShell for Custom Healer, Sites 2 & 3
- iShell for Custom Healer, Sites 14 & 15
- iShell for Custom Healer, Sites 18 & 19
- iShell for Custom Healer, Sites 30 & 31
Step 1
Seat the PEEK temporary abutment onto the the implant. Seat the iShell around the temporary abutment.
Step 2
Place composite material inside the iShell and around the temporary abutments. After the material has set remove the abutment and iShell assembly.
Step 3
Add material to any voids and then smooth sharp edges using an acrylic or carbide bur. Seat the restoration and torque the abutment screw to 30Ncm.
